PH10-AL-500

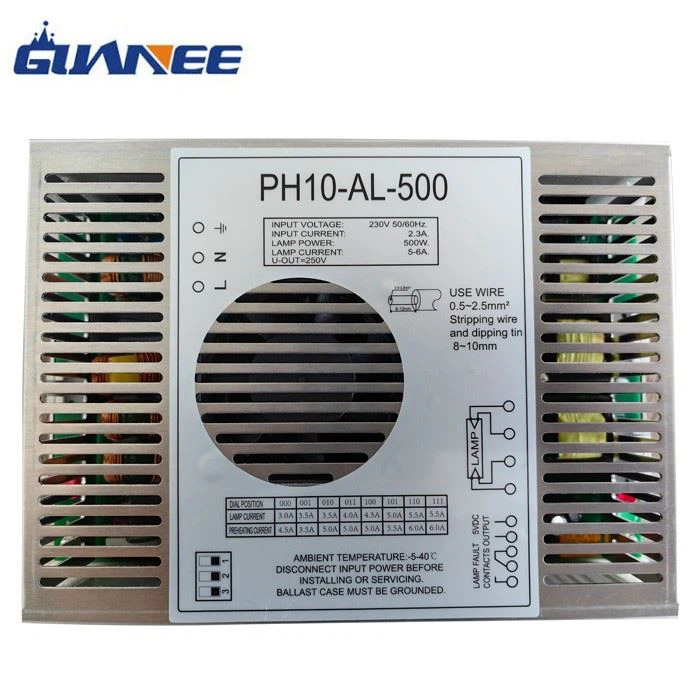

The PH10-AL-500 is a high-performance electronic ballast specifically engineered for high-power UVC lamps (400W–500W). Built with an industrial-grade aluminum housing and an integrated active cooling fan, it ensures long-term stability in demanding environments. Featuring an 8-level adjustable current dial switch, this ballast provides unmatched flexibility for various lamp types, making it the ideal choice for large-scale industrial water treatment and sterilization systems.

Product parameters

Model PH10-AL-500
Input Voltage 230V AC (50/60Hz)
Input Current 2.3A
Lamp Power 500W
Lamp Current 5.0A - 6.0A (Adjustable)
Max Output Voltage 250V (U-OUT)
Ambient Temperature -5°C to 40°C
Wire Range 0.5 - 2.5mm² (8-10mm stripped)
Signal Output 5V DC Lamp Fault Contact Output
Housing Material High-grade Aluminum (Active Fan Cooling)











Highlight Features
01.

High Power Stability

Optimized for 500W lamps with consistent output to extend UVC lamp life.

02.

Active Thermal Management

Integrated cooling fan and aluminum heat-sink casing prevent overheating during 24/7 operation.

03.

8-Level Precise Tuning

The built-in dial switch allows field adjustments to match lamp requirements perfectly.

04.

Industrial Durability

Compact, rugged design suitable for high-humidity water treatment plants.

Applications



02

HVAC Air Duct UV Germicidal Purifiers

03

Aquaculture Water Sterilization UV Reactors

04

Swimming Pool Water Disinfection Systems

05

Hospital, Laboratory Air Disinfection UV Units

Factory Advantages (Haining Guanyi Electrical)



Professional R&D

Over 20 years of expertise in UV lighting and electronic ballast technology.

01

Quality Assurance

Certified by CE, RoHS, and ISO9001, ensuring global market compliance.

02

OEM/ODM Service

Customized power, voltage, and casing designs tailored to your specific project needs.

03

Supply Chain Reliability

Located in Haining lighting hub, offering competitive pricing and fast lead times for bulk orders.

04

Technical Support

Dedicated engineering team to assist with system integration and configuration.

05

04



EXHIBITION

Haining Guanyi Electric Co., Ltd. has wrapped up our exhibition journey at IFAT Munich.
It was a great pleasure to meet numerous industry partners, engineers and distributors face to face at Booth B4.531.
We fully displayed our complete lineup of UVC germicidal lamps, UV electronic ballasts, quartz sleeves and supporting spare parts for water treatment, wastewater disinfection, aquaculture and air sterilization systems.
We appreciated every valuable conversation, requirement sharing and technical discussion with visitors.
All inquiries collected during the show are being followed up closely by our sales team.
Moving forward, we will keep focusing on stable, high-performance UV disinfection products and provide trusted solutions for global environmental protection industry.
Hope to keep in touch and explore win-win cooperation together!

FAQ





002

01.Can I adjust the current for different lamp brands?

Yes. The PH10-AL-500 features a 3-pin dial switch providing 8 different current combinations (3.0A to 5.5A) to ensure compatibility with most 400W-500W lamps.

02.Does it support remote monitoring?

Absolutely. The ballast includes a dedicated "Lamp Fault" terminal that outputs a 5V DC signal when the lamp fails, allowing for easy integration into your PLC or control panel.

03.What is the benefit of the aluminum case and fan?

High-power ballasts generate significant heat. The aluminum casing acts as a heat sink, while the active fan ensures airflow, maintaining an ambient temperature within safe limits even in enclosed cabinets.

04.Is there a warranty for bulk orders?

We offer a standard industrial warranty for all ballasts. Specific terms can be negotiated based on order volume and application environment.

05.How to guarantee your quality?

We strictly control the quality, and provide after-sales service at any time for the problems of product quality in the later period.
